Khoom Paub meej

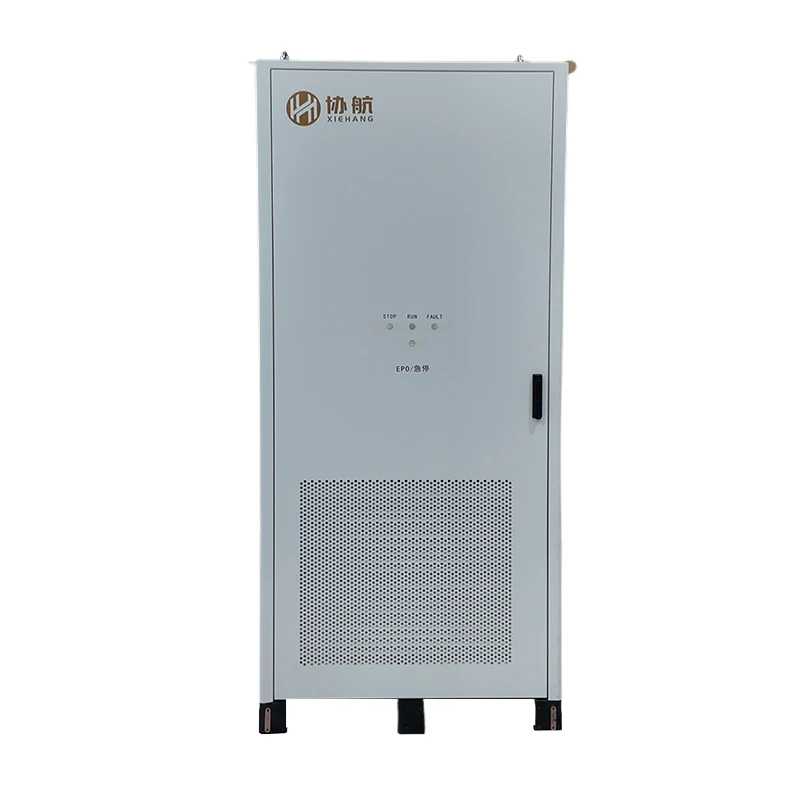

Tsim los ntawm kev nyab xeeb, siab - ceevLiFePO4 Cell, qhov noC&I Energy Storage Systemyog tsim los tswj kev sib txawv load profiles ntawm cov tsev kawm ntawv, tsev kho mob, thiab factories. Cov8000+ lub neej voj voogyog ib qho pov thawj rau kev tsim kom zoo, kom ntseeg tau tias covCommercial Thiab Industrial Zog Ciamuab kev ntseeg siab rov qab los ntawm kev nqis peev rau ntau tshaj 15 xyoo. Nws yog ibCE- tau ntawv pov thawjlub zog hub uas coj qib kev tshaj lij- qibC&I Energy Storage Systemthev naus laus zis mus txog qhov nruab nrab -kev lag luam loj.
Technical Parameters
|
Technical Specification |
261kWh C&I Cia Txee |
|
Roj teeb Chemistry |
Hwm LiFePO4 Cell (LFP) |
|
Cell Capacity & Hom |
314Ah Siab -Density Matrix |
|
Nominal Zog Muaj Peev Xwm |
261.248 kWh |
|
Rated AC tso zis zog |
125 kW tsi |
|
Lub neej voj voog |
8000+ cycles (@80% DOD, 0.5C) |
|
Thermal Management |
Ntse Forced Cua Txias |
|
Hluav Taws Xob Hluav Taws Xob |
Perfluoroketone & Aerosol Fire Protection System |
|
Kev Tiv Thaiv Kev Tiv Thaiv |
IP55 (Tag nrho - Huab cua sab nraum zoov) |
|
Cov ntawv pov thawj |
CE, IEC 62619, UN38.3, MSDS |
Peb Rhiav
FAQ
Q: Peak Shaving Energy Storage system xam thiab xa ROI tiag tiag li cas rau cov chaw tsim khoom lag luam?
A: Cov nqi hluav taws xob ua lag luam tsis yog them koj rau tag nrho lub zog koj siv; lawv them koj tus nqi them loj rau koj qhov "qhov xav tau siab tshaj" (qhov siab tshaj ntawm lub zog koj kos ntawm ib lub sijhawm). Peb Peak Shaving Energy Storage txee txuas ntxiv saib xyuas koj lub chaw ua haujlwm tseem ceeb. Lub millisecond koj lub tshuab hnyav ua rau muaj kev noj ntau heev, C&I Energy Storage System tam sim tso tawm lub zog los ntawm nws sab hauv LiFePO4 hlwb los tswj cov khoom hauv zos. Rau lub tuam txhab hluav taws xob, koj daim phiaj kos duab zoo nkaus li tiaj tus, tshem tawm ntau txhiab daus las hauv kev thov kev nplua txhua hli thiab xa cov khoom siv ROI meej hauv 3 txog 5 xyoos.
Q: Vim li cas lub roj teeb lub zog cia txias dua li cov cua txias rau lub peev xwm siab dua 200kWh?
A: Thaum koj ua haujlwm siab -tam sim no kev lag luam mus los ntawm 261kWh / 522kWh system, cov cua txias txheem tsim kev phom sij rau sab hauv "micro- huab cua"-cov cell nyob hauv nruab nrab ntawm cov khib nyiab khiav ntau dua li cov cell sab nraud. Qhov kub tsis sib xws no ua rau cov cell tsis sib xws thiab tua koj qhov kev lees paub. Peb cov kua txias roj teeb lub zog cia qhov system ncig lub voj voog txias txias ncaj qha hla txhua qhov module. Los ntawm kev ua kom qhov kub siab tshaj qhov sib txawv ntawm cov hlwb qis dua 3 degree, lub kaw lus tiv thaiv thermal tawg, ua kom muaj kev nyab xeeb ntawm hluav taws, thiab ruaj ntseg qhov tseem ceeb 8000+ lub neej voj voog rau koj cov khoom lag luam.
Q: Cov ntawv pov thawj thoob ntiaj teb ua raws li kev nyab xeeb thiab kev nyab xeeb dab tsi koj muab rau kev pom zoo rau qhov chaw lag luam?
A: Peb paub tias cov neeg ua haujlwm hauv cheeb tsam thiab cov kws tshuaj xyuas hluav taws tuaj yeem tuav lub zog ua lag luam rau lub hlis yog tias koj cov ntaub ntawv tsis zoo tag nrho. Tias yog vim li cas peb tag nrho Commercial Energy Storage System portfolio tuaj txog lub Hoobkas- tau ntawv pov thawj nrog cov ntaub ntawv tiav. Peb muab CE, IEC 62619, thiab tag nrho cov ntawv MSDS rau cov khoom siv hluav taws xob sab hauv thiab cov roj teeb. Rau qhov loj -tej kev tsim kho vaj tse, peb cov txee ua raws li UN3536 thiab UN38.3 kev thauj mus los thiab cov txheej txheem kev nyab xeeb, tso cai rau koj pab neeg ua haujlwm kom tshem cov kab sib chaws hauv zos- khi tso cai yam tsis muaj kev ncua sij hawm.
